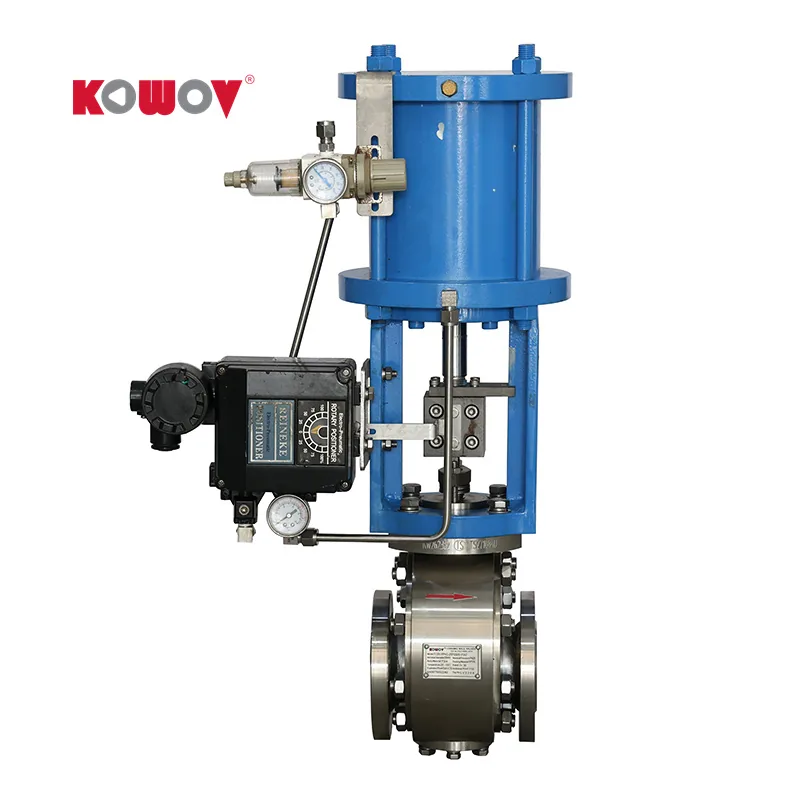

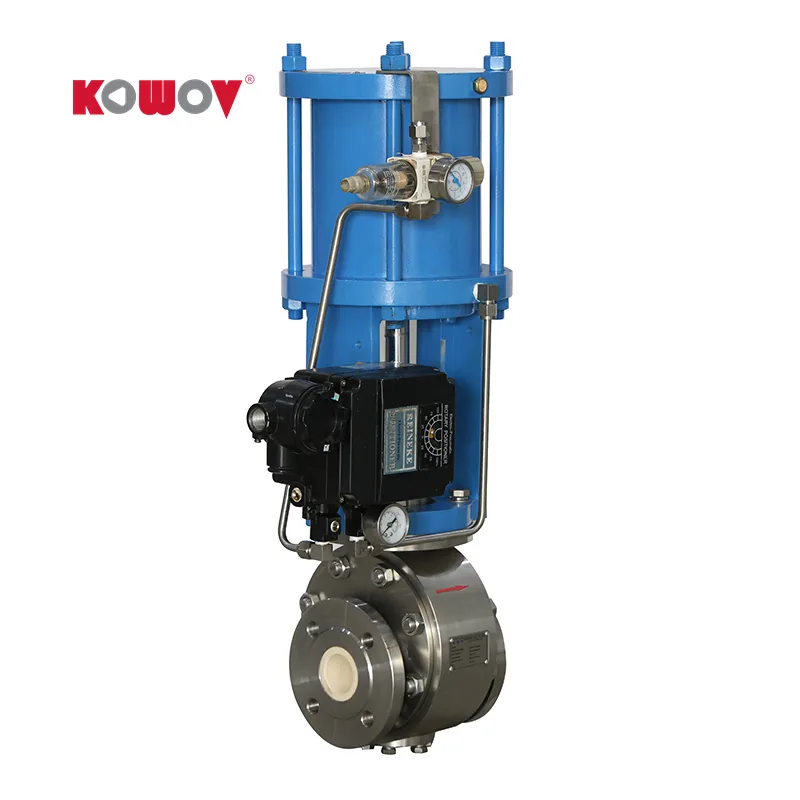

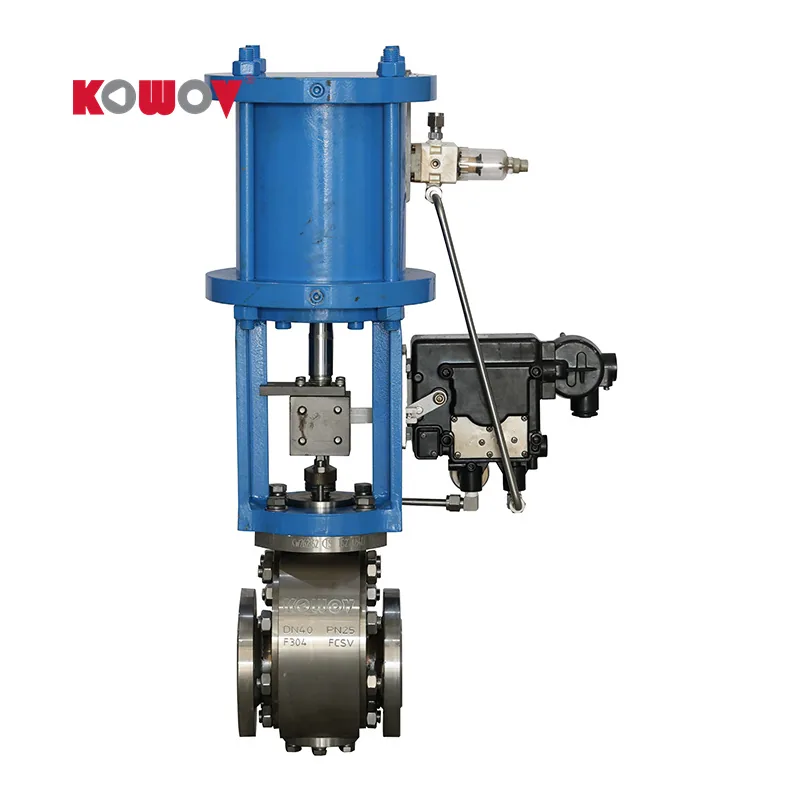

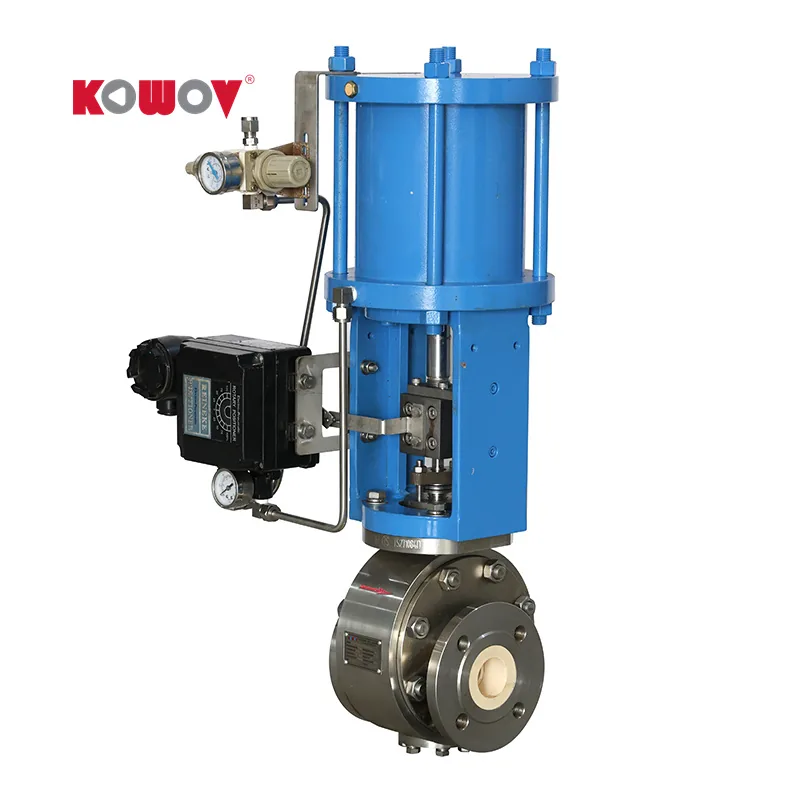

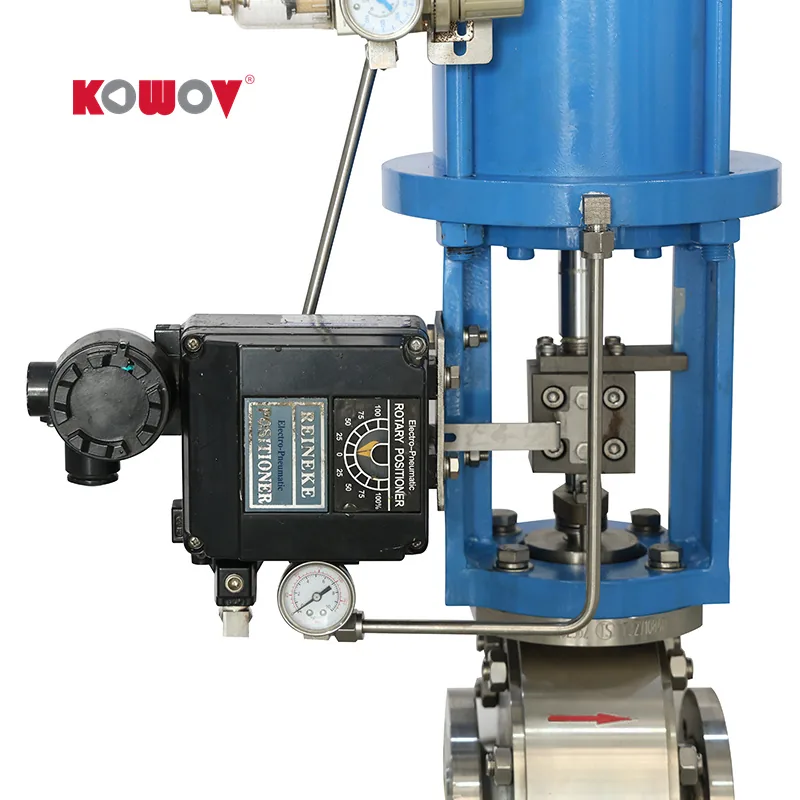

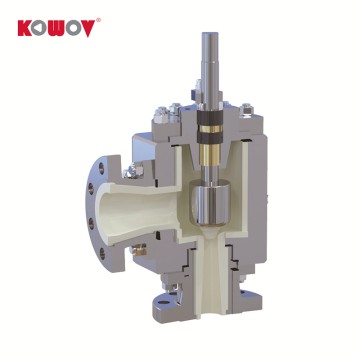

FCSV Ceramic Slide Valve
KOWOV manufactures the FCSV ceramic slide valve for slurry flow control in coal-chemical, soda ash, mining and petrochemical plants. It uses a flat slider and fixed seat at the edge of the flow passage; separating the valve and pipe openings is intended to reduce direct erosion of the sealing surfaces
- Size range
- DN50-400
- Pressure rating
- PN10-160 / Class 150-900
- Temperature range
- -29 to 456 °C
- Shutoff
- Unidirectional Class IV
Design and construction

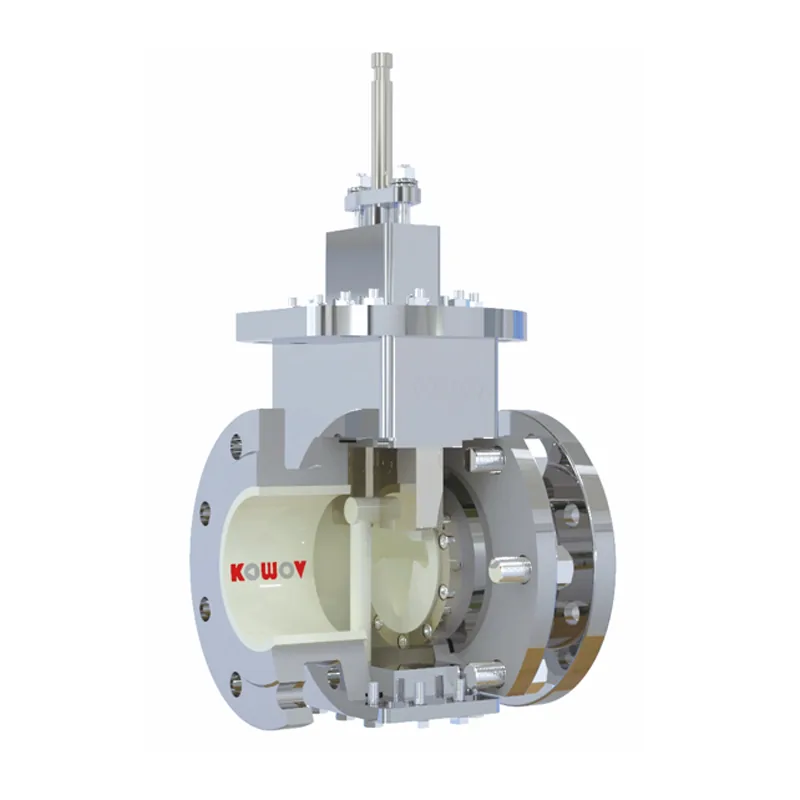

- The valve core moves linearly on the valve seat, creating a planar seal at the edge of the valve seat flow passage hole, allowing throttling, opening, and closingThe design minimizes flow resistance and erosion, with no sharp turns or stagnation pointsThe valve core is embedded in a metal mounting plate with ceramic to prevent breakage from cloggingEach valve seat and valve core are pair-ground to ensure sealingThe metal mounting plate has a T-slot that connects with the valve stem's T-slot, keeping the valve core floating and improving sealing performanceBoth valve core and seat are made of structural ceramic, with ceramic-lined flow passages at the flanges for wear, corrosion, and erosion resistanceThe valve's design extends its service life (interior valve body currently cannot be lined with ceramic)The live-load packing arrangement maintains packing force as wear occurs
Applications
Coal Chemical Industry: Quenching water control valve; black and grey water flow control valve
Salt Chemical Industry: Lime milk flow control valve in soda ash production
Petrochemical Industry: Catalyst particle transportation control valve
Ore Metallurgy: Tailings backfill, ore transportation, ore feeding, copper mine on-off and control valves
Waste Incineration Power Plants: Limestone slurry atomization flow control valve
Technical data
| Item | Y-ZrO Y-TZP | Mg-ZrO₂ M-PSZ | 90 Al₂O₃ | 95 Al₂O₃ | 99 Al₂O₃ | Si₃N₄ | SiC | Common ceramics | Carbide alloy | 45# Steel |
|
Density g/cm³ |
6.0~6.05 | 5.72~5.74 | 3.45~3.55 | 3.6~3.75 | 3.9~3.95 | 3.2~3.33 | 3.15~3.25 | 3.0~3.5 | 14~18 | 7.8 |
|
Hardness HRA/C |
87 | 85 | 90 | 90 | 92 | 92 | 94 | 50~60 | 70 | 36 |
|
Flexural Strength MPa |
1150 | 900 | 350 | 370 | 450 | 1200 | 470 | 20~50 | 2000 | 804 |
|
Fracture Toughness (KIC) MPa√m |
10~12 | 13~15 | 3.4 | 3.6 | 4.5 | 7 | 4 | -- | 20 | 101 |
|
Compressive Strength MPa |
2000 | 1800 | 1700 | 2000 | 2200 | 2800 | -- | -- | 4000 | 2000 |
|
Thermal Shock Resistance °C |
87 | 110 | -- | -- | 50 | 200 | 75 | -- | 500 | 500 |
|
Thermal Expansion Coefficient ×10⁻⁶/°C |
9.6 | 10 | 7.6 | 7.8 | 8.3 | 3.4 | 4 | -- | 7 | 12 |
|
Modulus of Elasticity GPa |
200 | 200 | 310 | 330 | 350 | 300 | 400 | -- | 600 | -- |
|
Crushing Load KN (Φ6mm) |
15 | 10 | 3.5 | 3.6 | 4 | 18 | 3.5 | -- | -- | -- |
|
Using Temperature °C |
<160 | <1000 | <1200 | <1250 | <1500 | <1500 | <1500 | -- | -- | <560 |
|
Water Absorption |
0 | 0 | 0.02% | 0.01% | 0.00% | 0 | 0.50% | 5~10% | -- | -- |
|
Corrosion Prevention |
Good | Good | Good | Good | Good | Good | Good | Flooey | Good | Flooey |
| Media | Temperature | ZrO₂ | 99.9% Al₂O₃ | SiC | Si₃N₄ | Graphite | PTFE | Fluororubber | SS304 | SS316 | HC |
| 20% HCL | 60°C | A | A | A | B | A | A | A | C | C | B |
| 20% HCL | 95°C | A | A | A | C | A | A | A | -- | -- | C |
| 90% H₂SO₄ | 60°C | A | A | A | A | A | A | A | C | C | B |
| 90% H₂SO₄ | 95°C | A | A | A | B | A | A | A | C | C | C |
| 60% H₃PO₄ | 60°C | A | A | A | C | A | A | A | C | C | A |
| 60% H₃PO₄ | 95°C | A | A | A | C | A | A | A | C | C | A |
| 10% HF | 60°C | C | B | A | A | A | A | A | C | C | B |
| 46% HF | 95°C | C | C | A | C | A | A | A | -- | -- | C |
| 60% HNO₃ | 60°C | A | A | A | C | B | A | A | A | A | C |
| 60% HNO₃ | 95°C | A | B | A | C | B | A | A | B | B | C |
| 30% NaOH | 60°C | A | B | A | B | A | A | A | A | A | A |
| 30% NaOH | 95°C | B | B | A | C | A | A | A | A | B | A |
Technical resources
Contact Us
Send the medium, temperature, pressure, nominal size, solids, actuation and current failure mode. The engineering team will review the duty before recommending a valve
