FCCV2 Ceramic Ball Valve

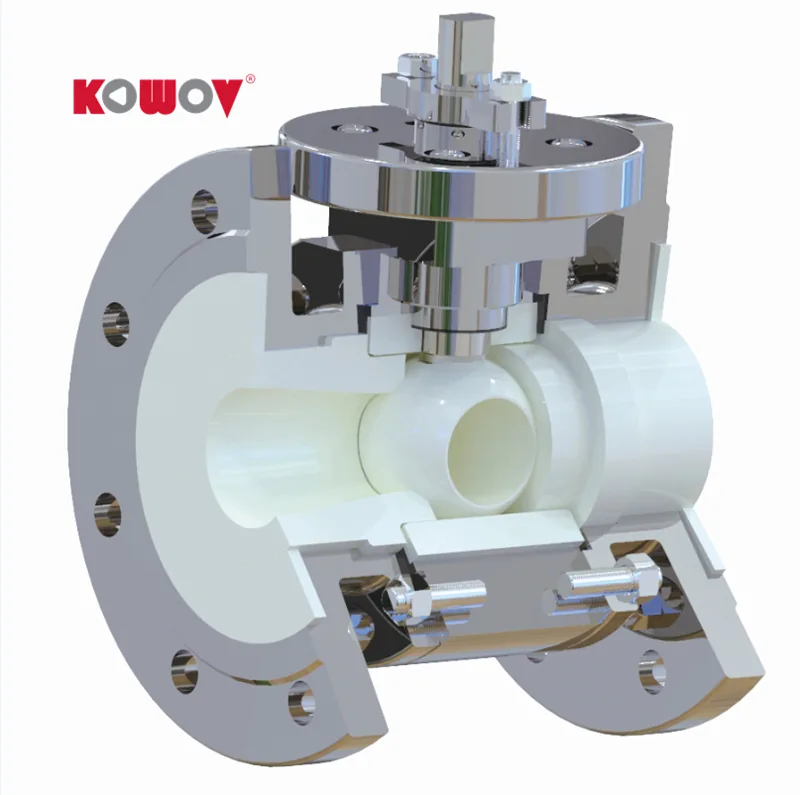

FCCV2 Ceramic Ball Valve, photo 1

KOWOV manufactures the FCCV2 hard-sealed ceramic ball valve, with no graphite or PTFE sealing rings, for polysilicon, petrochemical and high-temperature desulfurization duties. It is intended for service above the FCCV1 temperature range and for thermal shock, corrosive media and particle-bearing flow

Size range
DN15-250 (½″-10″)
Pressure rating
PN10-50 / Class 150-300
Temperature range
-40 to 456 °C
Sealing class
≥ Class IV
Request a quotation

Product overview

  • 1732259355504
  • The FCCV2 series high temperature ceramic ball valve is specifically developed for working conditions where standard ceramic valves cannot withstand extreme heat and rapid thermal shock. With a maximum service temperature of up to 456°C, this valve ensures safe and reliable operation in environments that combine high temperature, strong corrosion, and severe abrasion. It is widely applied in industries where conventional metal or alloy valves quickly fail, providing longer service life and reduced maintenance costs
    The FCCV2 uses a hard-sealed structure without graphite or PTFE sealing rings. The ceramic ball and seat are ground as a pair. A live-load packing system maintains packing force as wear occurs, while upper and lower sliding bearings locate the stem during thermal cycles

Design and construction

  • No sealing rings, suitable for high temperatures, organic solvents, and strong corrosive
    environments
    Fully hard-sealing surfaces, no non-metallic materials like graphite or PTFE
    "Live load" in the packing box maintains constant load under wear for long packing life
    Upper and lower sliding bearings in the packing box prevent valve displacement and
    packing squeeze, enhancing packing longevity
  • 1732259355504

High-temperature design

The FCCV2 is used for isolation and regulation of slurry, gas-solid and gas-solid-liquid service involving corrosion, abrasion or erosion. The catalogue lists service above 180 °C

Applications

  • 1732259355504

  • Polysilicon Industry: Transportation of silicon powder; reduction tail gas systems

    Chemical Plants: Harsh environments containing organic solvents

    Petrochemical Industry: Handling of hot solid solvents, corrosive slurries, and high-temperature catalyst pneumatic transport

    Power Plants & Waste Incineration: High-temperature desulfurization systems and handling of corrosive flue gases

    Chemical Processes: TiCl₄, FeCl₂, polymer production, and highly reactive mixtures

Technical data

Nominal diameter Exterior Size GB PN10 Flange Dia. HG PN10 Flange Dia. Weight (Kg)
Inch mm dn L W H D1 D2 D3 N-M T f D1 D2 D3 N-M T f
1/2" 15 15 108 166 94 45 65 95 4-M12 14 2 45 65 95 4-M12 14 2 4.5
3/4" 20 15 117 166 94 58 75 105 4-M12 16 2 58 75 105 4-M12 16 2 6
1" 25 20 127 166 97 68 85 115 4-M12 16 2 68 85 115 4-M12 16 2 7
1 1/4" 32 25 140 166 104 78 100 140 4-M16 16 2 78 100 140 4-M16 16 2 15
1 1/2" 40 32 165 237 125 88 110 150 4-M16 16 3 88 110 150 4-M16 16 3 23
2" 50 40 178 237 134 102 125 165 4-M16 18 3 102 125 165 4-M16 18 3 32
2 1/2" 65 50 190 237 145 122 145 185 8-M16 19 3 122 145 185 8-M16 19 3 39
3" 80 65 203 270 169 138 160 200 8-M16 21 3 138 160 200 8-M16 21 3 45
4" 100 80 229 191 158 180 220 8-M16 22.3 3 158 180 220 8-M16 22.3 3 59
5" 125 100 254 407 188 210 250 8-M16 23 3 188 210 250 8-M16 23 3 69.5
6" 150 100 267 407 212 240 285 8-M20 26 3 212 240 285 8-M20 26 3 90
8" 200 150 419 292 520 248 268 295 340 360 8-φ22 8-M20 22 33 2 3 268 262 295 290 340 360 8-φ22 8-M20 22 33 2 3 200
10" 250 200 457 580 320 350 395 12-M20 24 2 320 350 395 12-M20 24 2 290
Item Y-ZrO Y-TZP Mg-ZrO₂ M-PSZ 90 Al₂O₃ 95 Al₂O₃ 99 Al₂O₃ Si₃N₄ SiC Common ceramics Carbide alloy 45# Steel

Density g/cm³

 6.0~6.05 5.72~5.74 3.45~3.55 3.6~3.75 3.9~3.95 3.2~3.33 3.15~3.25 3.0~3.5 14~18 7.8

Hardness HRA/C

 87 85 90 90 92 92 94 50~60 70 36

Flexural Strength MPa

 1150 900 350 370 450 1200 470 20~50 2000 804

Fracture Toughness (KIC) MPa√m

 10~12 13~15 3.4 3.6 4.5 7 4 -- 20 101

Compressive Strength MPa

 2000 1800 1700 2000 2200 2800 -- -- 4000 2000

Thermal Shock Resistance °C

 87 110 -- -- 50 200 75 -- 500 500

Thermal Expansion Coefficient ×10⁻⁶/°C

 9.6 10 7.6 7.8 8.3 3.4 4 -- 7 12

Modulus of Elasticity GPa

 200 200 310 330 350 300 400 -- 600 --

Crushing Load KN (Φ6mm)

 15 10 3.5 3.6 4 18 3.5 -- -- --

Using Temperature °C

 <160 <1000 <1200 <1250 <1500 <1500 <1500 -- -- <560

Water Absorption

 0 0 0.02% 0.01% 0.00% 0 0.50% 5~10% -- --

Corrosion Prevention

 Good Good Good Good Good Good Good Flooey Good Flooey
*Data sources: test results or issued original documents
product-description1
ANTI-CORROSIVE PERFORMANCE REFERENCE TABLE
Media Temperature ZrO₂ 99.9% Al₂O₃ SiC Si₃N₄ Graphite PTFE Fluororubber SS304 SS316 HC
20% HCL 60°C A A A B A A A C C B
20% HCL 95°C A A A C A A A -- -- C
90% H₂SO₄ 60°C A A A A A A A C C B
90% H₂SO₄ 95°C A A A B A A A C C C
60% H₃PO₄ 60°C A A A C A A A C C A
60% H₃PO₄ 95°C A A A C A A A C C A
10% HF 60°C C B A A A A A C C B
46% HF 95°C C C A C A A A -- -- C
60% HNO₃ 60°C A A A C B A A A A C
60% HNO₃ 95°C A B A C B A A B B C
30% NaOH 60°C A B A B A A A A A A
30% NaOH 95°C B B A C A A A A B A
A ≤ 0.1mmg/cm²/day: Can be ignored or has no corrosion, recommended for use
B = 0.1~0.3mmg/cm²/day: Slight or very minor corrosion, use with caution
C ≥ 0.3mmg/cm²/day: Significant corrosion, not recommended for use
-- : Intense corrosion, to the extent that measurement is not possible
Flow Characteristic Sheet of Ceramic Ball Valve
Core Specifications O-type ball core V60° ball core V45° ball core V30° ball core
DN15 10 7 4 3
DN20 18.2 12 8 5
DN25 29 18 12 8
DN32 47 30 20 13
DN40 73 46 31 21
DN50 114 72 48 32
DN65 181 115 76 51
DN80 292 185 123 82
DN100 456 289 192 128
DN125 712 452 300 201
DN150 1025 650 432 289
DN200 1822 1156 769 514

Technical resources

Contact Us

Send the medium, temperature, pressure, nominal size, solids, actuation and current failure mode. The engineering team will review the duty before recommending a valve
