FCCV1 Ceramic Ball Valve

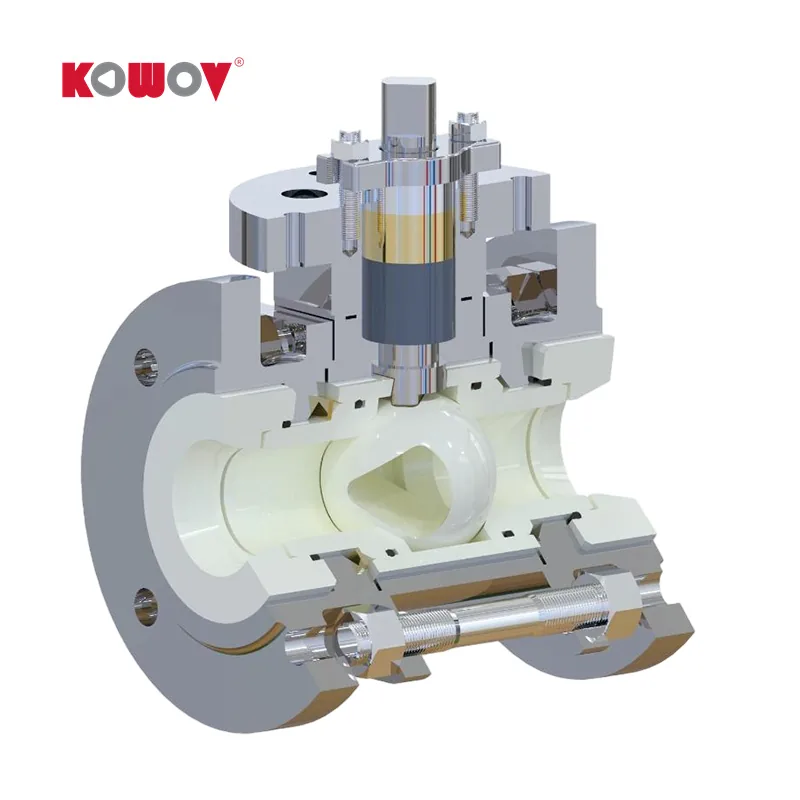

FCCV1 Ceramic Ball Valve, photo 2

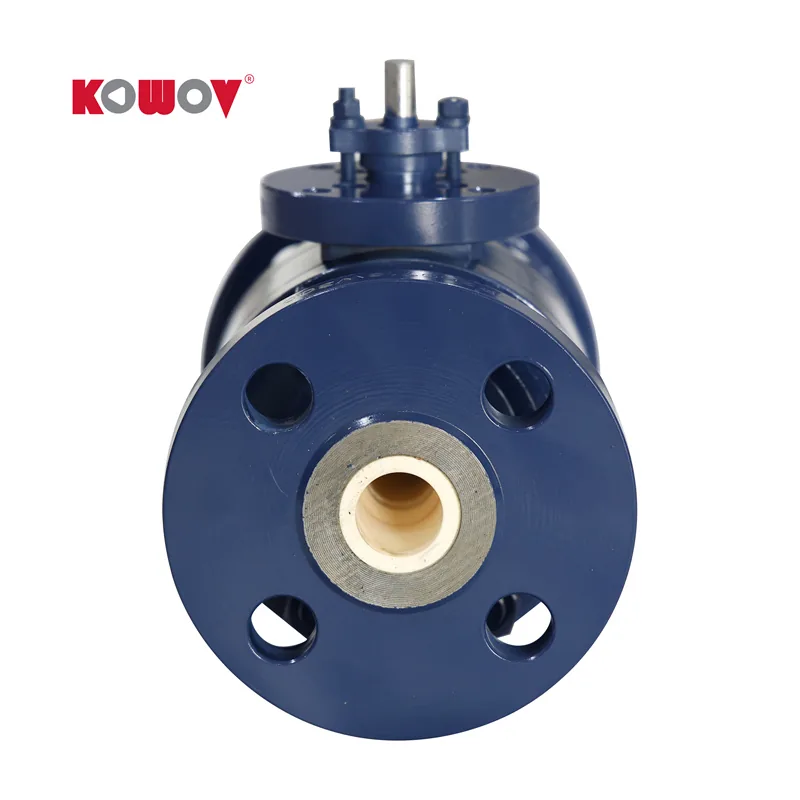

FCCV1 Ceramic Ball Valve, photo 3

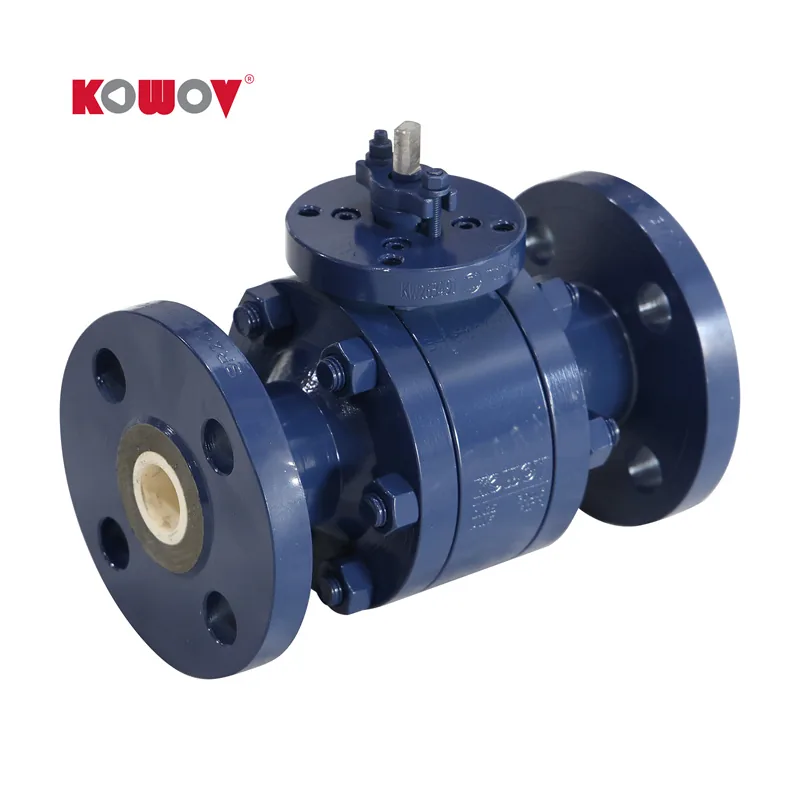

FCCV1 Ceramic Ball Valve, photo 4

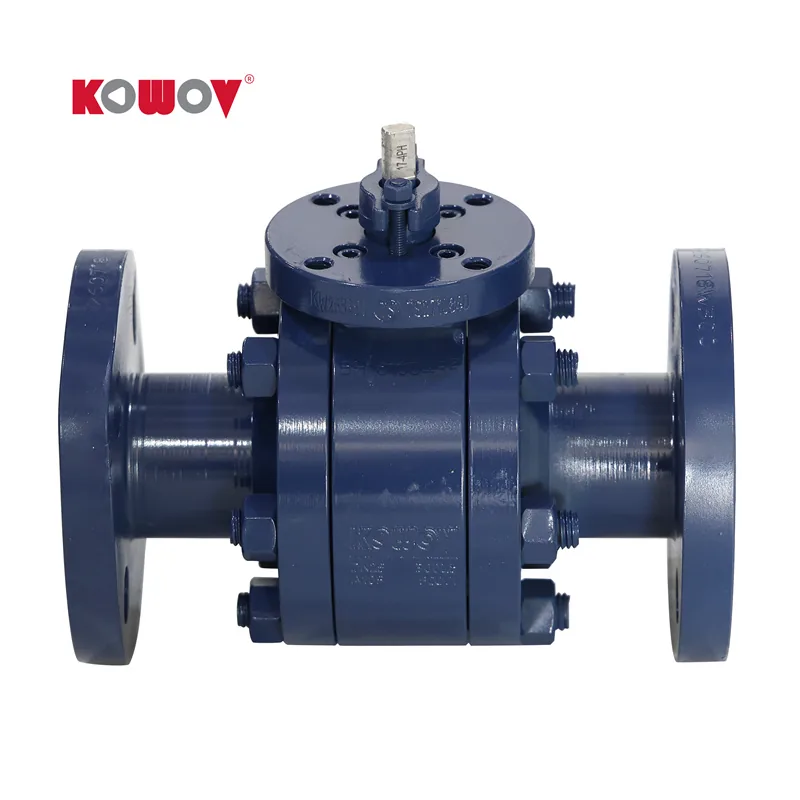

FCCV1 Ceramic Ball Valve, photo 5
FCCV1 Ceramic Ball Valve, photo 6

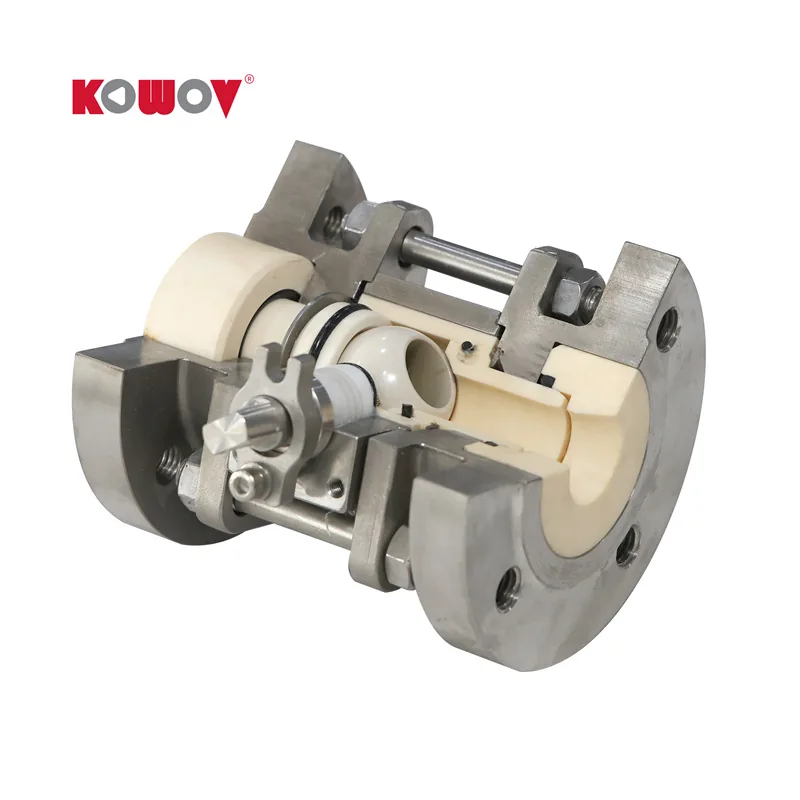

FCCV1 Ceramic Ball Valve, photo 7

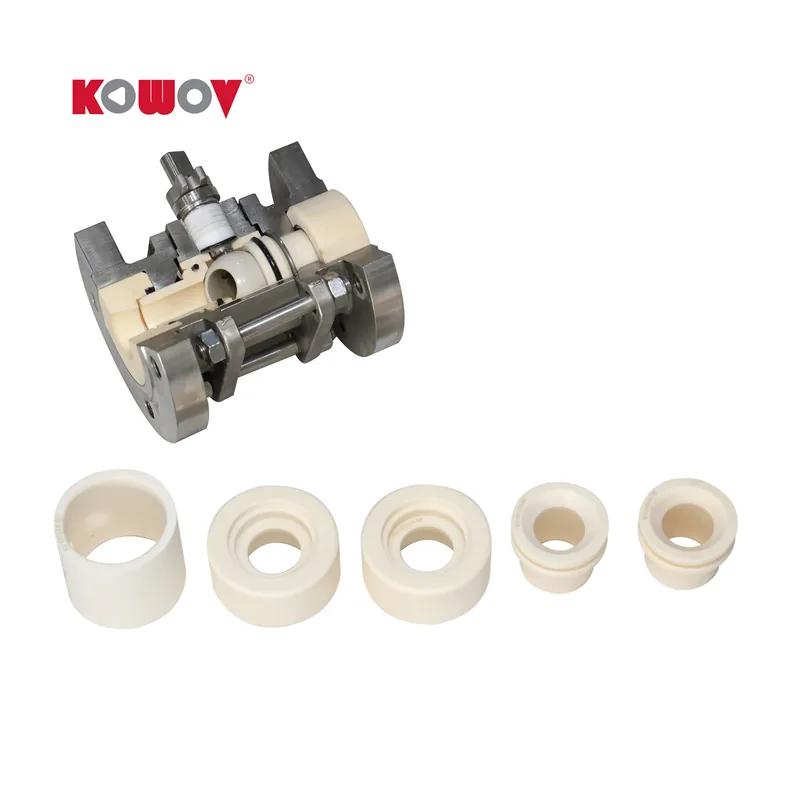

FCCV1 Ceramic Ball Valve, photo 8

KOWOV manufactures the FCCV1 standard ceramic ball valve for abrasive, corrosive slurries in FGD, waste incineration, steel and pulp and paper plants. It handles on-off and regulating service in corrosive media containing solid abrasives

Size range
DN15-250 (½″-10″)
Pressure rating
PN10-50 / Class 150-300
Temperature range
-40 to 180 °C
Sealing class
≥ Class IV
Request a quotationView solutions

Product overview

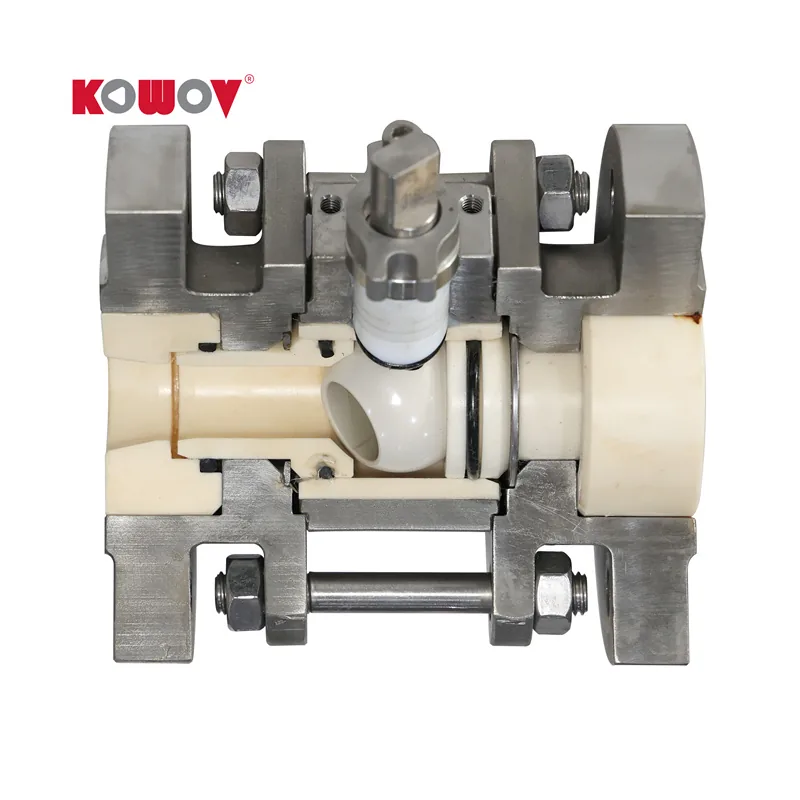

  • FCCV1 Ceramic Ball Valve - product overview
  • The FCCV1 standard ceramic ball valve is designed for corrosive, abrasive and scaling service. Valve-stem options listed in the catalogue include 316/316L stainless steel, HC alloy, Monel alloy and structural ceramics, selected to match the operating medium

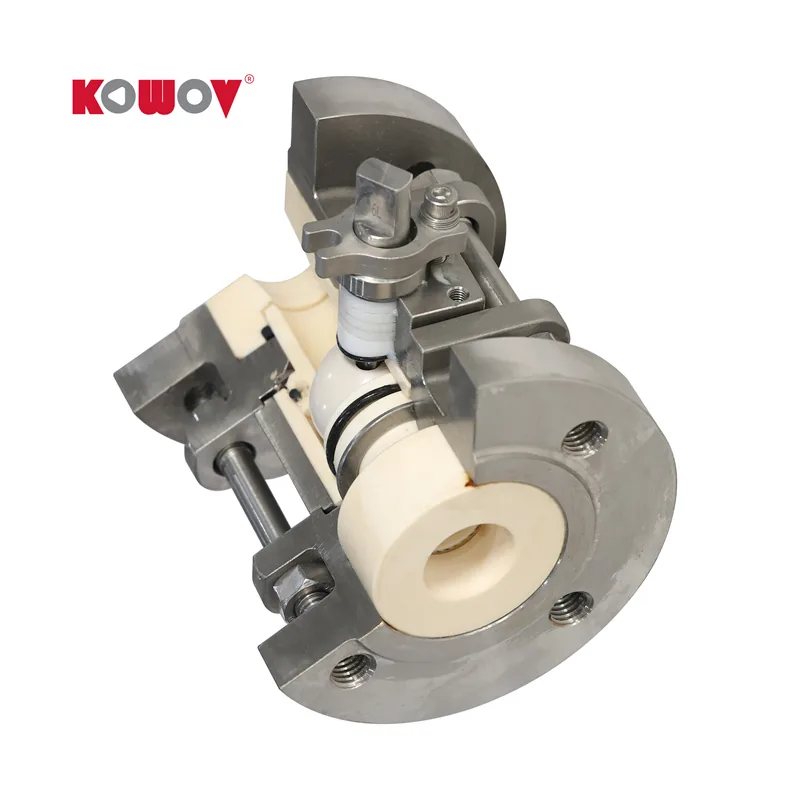

    The FCCV1 uses a symmetrical body for bidirectional sealing. A broad scraper-type seat clears particles from the sealing path, and the ceramic ball and seat are ground as a pair. The packing box uses a live-load arrangement to maintain packing force as wear occurs. The ceramic flange surface separates the metal flange from the process medium

Design and construction

  • FCCV1 Ceramic Ball Valve - design and construction
  • Broad sealing surface with scraper-type valve seat for reliability and long life
    Matched and ground ball and seat surfaces ensure sealing
    Packing box with "live load" for constant load under wear, prolonging packing life
    Symmetrical valve design for bidirectional sealing, with no flow-direction restriction
    Large ceramic flange surface protects metal flange from erosion and corrosion

Industries and applications

  • Power Plants

    Applications: desulfurization units, fly ash handling, lime slurry, gypsum slurry, filtrate processing

    Typical Media: limestone slurry, calcium hydroxide slurry, gypsum slurry, chloride-rich liquids, dust

    Waste Incineration & Waste-to-Energy Plants

    Applications: desulfurization, lime slurry circulation, HCl absorption towers

    Typical Media: HCl scrubbing solutions, lime milk solution (regular pH, for desulfurization)

    Steel Plants

    Applications: pulverized coal injection, lock hopper safety valves, hot metal desulfurization, slag handling

    Typical Media: coal powder, additives for electric arc furnaces (e.g., carbon powder), desulfurization with CaC, SiO₂, MgO₂, and slag formed from quartz sand

    Pulp & Paper Mills

    Applications: slurry control, filler dosing, bleaching, alkali handling

    Typical Media: lime milk slurry, kaolin, talc, quartz, CaCO₃, MgO, pulp with wood chip residues, bleaching agents, NaOH

    Chemical Industry

    Applications: chemical desulfurization, sulfur recovery, polymer and slurry processing, corrosive fluid handling

    Typical Media: acids, low-pH media containing solids, metal slurries, polymers, TiO₂ slurry, TiCl₄, FeCl₂, and other corrosive mixtures

    Pneumatic Conveying Systems

    Applications: powder transport in various industries

    Typical Media: sand, lime, glass, cement, ores, gypsum, powders

    Fertilizer Production

    Applications: slurry and chemical handling in fertilizer processes

    Typical Media: ammonium nitrate, phosphoric acid, phosphates

    For this configuration, the catalogue lists operating temperatures up to 180 °C and pressure differentials up to 2.0 MPa. Final selection depends on the medium, solids, temperature, pressure and actuation duty
  • FCCV1 Ceramic Ball Valve - industries and applications

Technical data

Nominal diameter Exterior Size GB PN10 Flange Dia. HG PN10 Flange Dia. Weight (Kg)
Inch mm dn L W H D1 D2 D3 N-M T f D1 D2 D3 N-M T f
1/2" 15 15 108 166 94 45 65 95 4-M12 14 2 45 65 95 4-M12 14 2 4.5
3/4" 20 15 117 166 94 58 75 105 4-M12 16 2 58 75 105 4-M12 16 2 6
1" 25 20 127 166 97 68 85 115 4-M12 16 2 68 85 115 4-M12 16 2 7
1 1/4" 32 25 140 166 104 78 100 140 4-M16 16 2 78 100 140 4-M16 16 2 15
1 1/2" 40 32 165 237 125 88 110 150 4-M16 16 3 88 110 150 4-M16 16 3 23
2" 50 40 178 237 134 102 125 165 4-M16 18 3 102 125 165 4-M16 18 3 32
2 1/2" 65 50 190 237 145 122 145 185 8-M16 19 3 122 145 185 8-M16 19 3 39
3" 80 65 203 270 169 138 160 200 8-M16 21 3 138 160 200 8-M16 21 3 45
4" 100 80 229 191 158 180 220 8-M16 22.3 3 158 180 220 8-M16 22.3 3 59
5" 125 100 254 407 188 210 250 8-M16 23 3 188 210 250 8-M16 23 3 69.5
6" 150 100 267 407 212 240 285 8-M20 26 3 212 240 285 8-M20 26 3 90
8" 200 150 419 292 520 248 268 295 340 360 8-φ22 8-M20 22 33 2 3 268 262 295 290 340 360 8-φ22 8-M20 22 33 2 3 200
10" 250 200 457 580 320 350 395 12-M20 24 2 320 350 395 12-M20 24 2 290
Item Y-ZrO Y-TZP Mg-ZrO₂ M-PSZ 90 Al₂O₃ 95 Al₂O₃ 99 Al₂O₃ Si₃N₄ SiC Common ceramics Carbide alloy 45# Steel

Density g/cm³

 6.0~6.05 5.72~5.74 3.45~3.55 3.6~3.75 3.9~3.95 3.2~3.33 3.15~3.25 3.0~3.5 14~18 7.8

Hardness HRA/C

 87 85 90 90 92 92 94 50~60 70 36

Flexural Strength MPa

 1150 900 350 370 450 1200 470 20~50 2000 804

Fracture Toughness (KIC) MPa√m

 10~12 13~15 3.4 3.6 4.5 7 4 -- 20 101

Compressive Strength MPa

 2000 1800 1700 2000 2200 2800 -- -- 4000 2000

Thermal Shock Resistance °C

 87 110 -- -- 50 200 75 -- 500 500

Thermal Expansion Coefficient ×10⁻⁶/°C

 9.6 10 7.6 7.8 8.3 3.4 4 -- 7 12

Modulus of Elasticity GPa

 200 200 310 330 350 300 400 -- 600 --

Crushing Load KN (Φ6mm)

 15 10 3.5 3.6 4 18 3.5 -- -- --

Using Temperature °C

 <160 <1000 <1200 <1250 <1500 <1500 <1500 -- -- <560

Water Absorption

 0 0 0.02% 0.01% 0.00% 0 0.50% 5~10% -- --

Corrosion Prevention

 Good Good Good Good Good Good Good Flooey Good Flooey
*Data sources: test results or issued original documents
product-description1
ANTI-CORROSIVE PERFORMANCE REFERENCE TABLE
Media Temperature ZrO₂ 99.9% Al₂O₃ SiC Si₃N₄ Graphite PTFE Fluororubber SS304 SS316 HC
20% HCL 60°C A A A B A A A C C B
20% HCL 95°C A A A C A A A -- -- C
90% H₂SO₄ 60°C A A A A A A A C C B
90% H₂SO₄ 95°C A A A B A A A C C C
60% H₃PO₄ 60°C A A A C A A A C C A
60% H₃PO₄ 95°C A A A C A A A C C A
10% HF 60°C C B A A A A A C C B
46% HF 95°C C C A C A A A -- -- C
60% HNO₃ 60°C A A A C B A A A A C
60% HNO₃ 95°C A B A C B A A B B C
30% NaOH 60°C A B A B A A A A A A
30% NaOH 95°C B B A C A A A A B A
A ≤ 0.1mmg/cm²/day: Can be ignored or has no corrosion, recommended for use
B = 0.1~0.3mmg/cm²/day: Slight or very minor corrosion, use with caution
C ≥ 0.3mmg/cm²/day: Significant corrosion, not recommended for use
-- : Intense corrosion, to the extent that measurement is not possible
Flow Characteristic Sheet of Ceramic Ball Valve
Core Specifications O-type ball core V60° ball core V45° ball core V30° ball core
DN15 10 7 4 3
DN20 18.2 12 8 5
DN25 29 18 12 8
DN32 47 30 20 13
DN40 73 46 31 21
DN50 114 72 48 32
DN65 181 115 76 51
DN80 292 185 123 82
DN100 456 289 192 128
DN125 712 452 300 201
DN150 1025 650 432 289
DN200 1822 1156 769 514

Application reading
