FCCV6 Ceramic Ball Valve

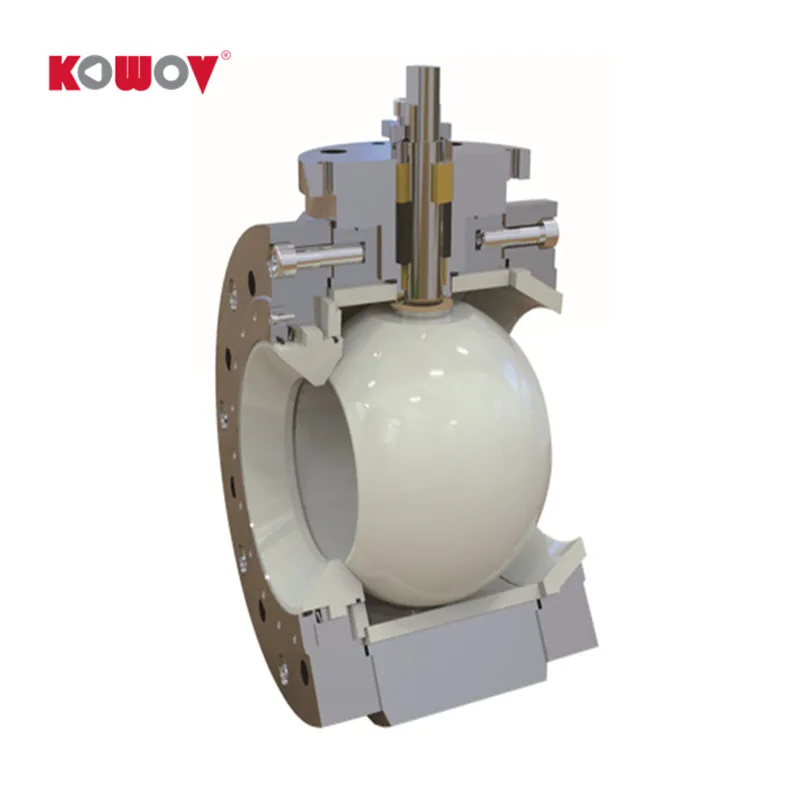

FCCV6 Ceramic Ball Valve, photo 1

KOWOV manufactures the FCCV6 single-seat ceramic ball valve for viscous, crystallizing, scaling and abrasive slurries in TiO₂, salt chemical and mining plants. Its no-dead-space flow path is intended to limit material accumulation in mining, hydrometallurgy, slag-slurry control and flue-gas-desulfurization duties

Size range
DN25-400
Pressure rating
PN10-50 / Class 150-300
Temperature range
-40 to 220 °C
Request a quotationView solutions

Design and construction

  • No-cavity design limits clogging, buildup and scaling in the flow path

    Fixed ball design delivers lower operating torque and stable control, even with dense slurries

    Shutoff class is listed as ANSI Class VI in the catalogue

    Scraper-type valve seat cleans the sealing surfaces automatically during every operation, preventing crystallization and scaling

    Blowout-proof stem design enhances operational safety in critical environments

    Automatic packing compensation structure maintains sealing force over time, extending service life

    The single-seat design is used for isolation and regulation of slurry, gas-solid and gas-solid-liquid service, including viscous, crystallizing, scaling and mineral slurries
  • 1732261485365

Applications

  • 1732261485365

  • Titanium Dioxide (TiO₂) Industry

    Acidic slurries in the sulfate process for TiO₂ production

    TiCl₄ slurry and sludge in the chloride process

    Chlorine with biochemical substances and TiO₂ powder

    Salt Chemical Industry

    Salt sludge, caustic mud, carbide residue slurry, waste sludge, sand-removed ammonia wastewater

    Petrochemical Industry

    Molecular sieve lines in catalyst production units

    Fluidized catalytic cracking units (Al₂O₃ powders)

    Mining & Mineral Processing

    Transport and blending of copper concentrates; safety valves for copper transport bins

    Dye Manufacturing

    TiO₂-containing solutions at specific concentrations, sulfuric acid solutions, and diluted acid solutions

Other Application Fields

  • Mining & Mineral Processing: Abrasive ore slurries, concentrate slurries, and tailings

    Hydrometallurgy: Handling of acid and alkaline slurries, leaching solutions

    Environmental Protection: Flue gas desulfurization (FGD) systems, gypsum slurry

    Steelmaking & Smelting: Slag slurry adjustment and regulation of high-wear media

  • 1732261485365

Technical data

Nominal diameter Exterior Size GB PN10 Flange Dia. HG PN10 Flange Dia. Weight (Kg)
Inch mm dn L W H D1 D2 D3 N-M T f D1 D2 D3 N-M T f
1/2" 15 15 108 166 94 45 65 95 4-M12 14 2 45 65 95 4-M12 14 2 4.5
3/4" 20 15 117 166 94 58 75 105 4-M12 16 2 58 75 105 4-M12 16 2 6
1" 25 20 127 166 97 68 85 115 4-M12 16 2 68 85 115 4-M12 16 2 7
1 1/4" 32 25 140 166 104 78 100 140 4-M16 16 2 78 100 140 4-M16 16 2 15
1 1/2" 40 32 165 237 125 88 110 150 4-M16 16 3 88 110 150 4-M16 16 3 23
2" 50 40 178 237 134 102 125 165 4-M16 18 3 102 125 165 4-M16 18 3 32
2 1/2" 65 50 190 237 145 122 145 185 8-M16 19 3 122 145 185 8-M16 19 3 39
3" 80 65 203 270 169 138 160 200 8-M16 21 3 138 160 200 8-M16 21 3 45
4" 100 80 229 191 158 180 220 8-M16 22.3 3 158 180 220 8-M16 22.3 3 59
5" 125 100 254 407 188 210 250 8-M16 23 3 188 210 250 8-M16 23 3 69.5
6" 150 100 267 407 212 240 285 8-M20 26 3 212 240 285 8-M20 26 3 90
8" 200 150 419 292 520 248 268 295 340 360 8-φ22 8-M20 22 33 2 3 268 262 295 290 340 360 8-φ22 8-M20 22 33 2 3 200
10" 250 200 457 580 320 350 395 12-M20 24 2 320 350 395 12-M20 24 2 290
Item Y-ZrO Y-TZP Mg-ZrO₂ M-PSZ 90 Al₂O₃ 95 Al₂O₃ 99 Al₂O₃ Si₃N₄ SiC Common ceramics Carbide alloy 45# Steel

Density g/cm³

 6.0~6.05 5.72~5.74 3.45~3.55 3.6~3.75 3.9~3.95 3.2~3.33 3.15~3.25 3.0~3.5 14~18 7.8

Hardness HRA/C

 87 85 90 90 92 92 94 50~60 70 36

Flexural Strength MPa

 1150 900 350 370 450 1200 470 20~50 2000 804

Fracture Toughness (KIC) MPa√m

 10~12 13~15 3.4 3.6 4.5 7 4 -- 20 101

Compressive Strength MPa

 2000 1800 1700 2000 2200 2800 -- -- 4000 2000

Thermal Shock Resistance °C

 87 110 -- -- 50 200 75 -- 500 500

Thermal Expansion Coefficient ×10⁻⁶/°C

 9.6 10 7.6 7.8 8.3 3.4 4 -- 7 12

Modulus of Elasticity GPa

 200 200 310 330 350 300 400 -- 600 --

Crushing Load KN (Φ6mm)

 15 10 3.5 3.6 4 18 3.5 -- -- --

Using Temperature °C

 <160 <1000 <1200 <1250 <1500 <1500 <1500 -- -- <560

Water Absorption

 0 0 0.02% 0.01% 0.00% 0 0.50% 5~10% -- --

Corrosion Prevention

 Good Good Good Good Good Good Good Flooey Good Flooey
*Data sources: test results or issued original documents
product-description1
ANTI-CORROSIVE PERFORMANCE REFERENCE TABLE
Media Temperature ZrO₂ 99.9% Al₂O₃ SiC Si₃N₄ Graphite PTFE Fluororubber SS304 SS316 HC
20% HCL 60°C A A A B A A A C C B
20% HCL 95°C A A A C A A A -- -- C
90% H₂SO₄ 60°C A A A A A A A C C B
90% H₂SO₄ 95°C A A A B A A A C C C
60% H₃PO₄ 60°C A A A C A A A C C A
60% H₃PO₄ 95°C A A A C A A A C C A
10% HF 60°C C B A A A A A C C B
46% HF 95°C C C A C A A A -- -- C
60% HNO₃ 60°C A A A C B A A A A C
60% HNO₃ 95°C A B A C B A A B B C
30% NaOH 60°C A B A B A A A A A A
30% NaOH 95°C B B A C A A A A B A
A ≤ 0.1mmg/cm²/day: Can be ignored or has no corrosion, recommended for use
B = 0.1~0.3mmg/cm²/day: Slight or very minor corrosion, use with caution
C ≥ 0.3mmg/cm²/day: Significant corrosion, not recommended for use
-- : Intense corrosion, to the extent that measurement is not possible
Flow Characteristic Sheet of Ceramic Ball Valve
Core Specifications O-type ball core V60° ball core V45° ball core V30° ball core
DN15 10 7 4 3
DN20 18.2 12 8 5
DN25 29 18 12 8
DN32 47 30 20 13
DN40 73 46 31 21
DN50 114 72 48 32
DN65 181 115 76 51
DN80 292 185 123 82
DN100 456 289 192 128
DN125 712 452 300 201
DN150 1025 650 432 289
DN200 1822 1156 769 514

Application reading

More application reading

Technical resources

Contact Us

Send the medium, temperature, pressure, nominal size, solids, actuation and current failure mode. The engineering team will review the duty before recommending a valve
